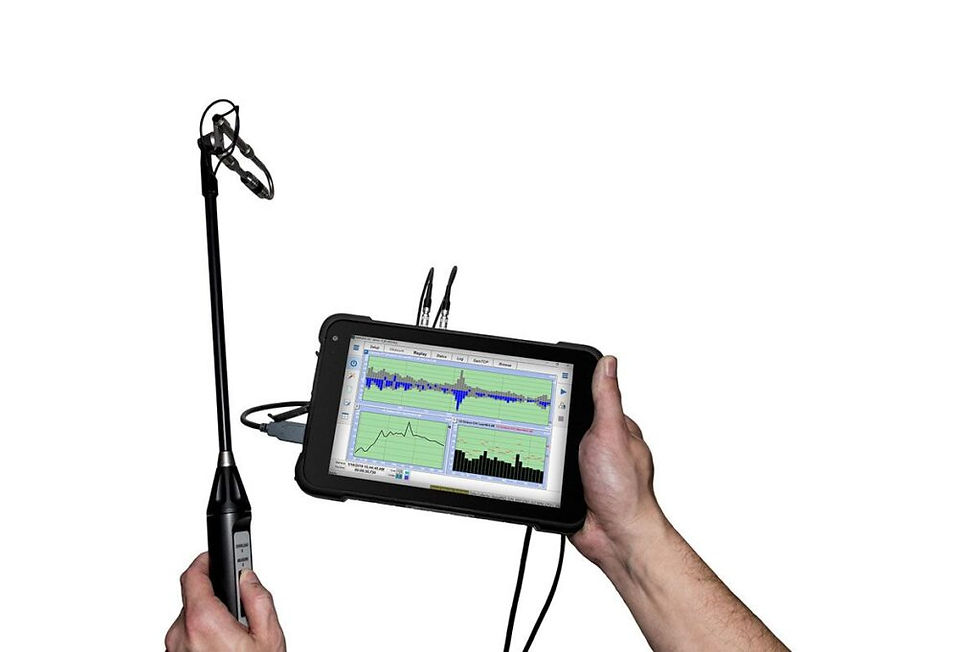

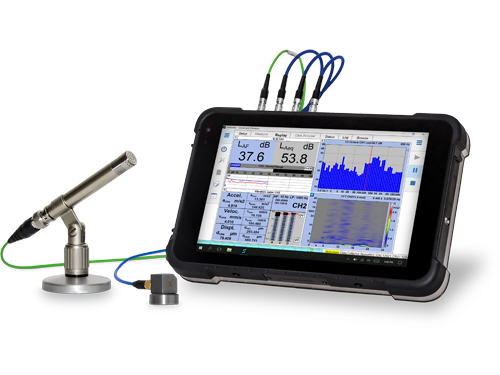

The NoisePAD™ is our new 4-channel noise and vibration analyzer. Minimal size and weight make the NoisePAD™ a perfect fit for mobile applications thus closing the gap between our hand-held sound level meters and the Soundbook measuring system. Very low power consumption allows tripling of the battery life compared to the Soundbook to a maximum of 12 hours.

​

This combination of a robust industrial 8-inch tablet and a DSP-based analyzer complies with MIL-STD-810. Rubber seals protect all connectors from water and dust. The NoisePAD™ thus fulfils the requirements of IP54.

​

To also meet the conditions for metering points according to articles 28 and 29 of the German federal immission control act (Bundes-Immissionsschutzgesetz) the NoisePAD™ is currently being prepared for design approval by the German federal physical-technical institute (Physikalisch-Technische Bundesanstalt, PTB).

The NoisePAD™ has two additional tacho/trigger channels for rotational speed measurements as well as external control of the instrument. It also offers a signal generator output, which allows to generate noise or sweep signals for example. The integrated LEMO CAMA connectors enable secure and reliable interfacing with ICP/IPEE sensors.

​

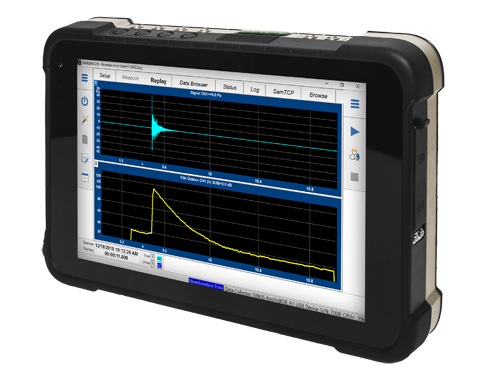

The NoisePAD™ features a full version of Windows 10 supporting all common Windows applications. The new optimized software interface of SAMURAI™ 3.0 has been adapted to support the NoisePAD™ touch control. This allows you to cross-use our software products on the NoisePAD™.

Interfaces as USB, Bluetooth, 4G and WiFi, SD cards as well as front and rear cameras extend the application scope of this instrument.

​

The NoisePAD™ is particularly well suited for:

• Sound intensity measurements

• ISO 9614 sound power measurements

• Rotor balancing

• Machinery vibration measurements

• Building acoustics

• Noise and vibration monitoring

• Occupational health/human vibration measurements

• Environmental noise & building vibration monitoring

• Engineering services

• Quality assurance

• Frequency analysis

• Modal analysis

• Order analysis

• Structural analysis

​

Standards

IEC 61672: Class 1 sound level meter

IEC 60651: Class 1 sound level meter

IEC 60804: Class 1 sound level meter

IEC 61260: Class 0 filter

DIN EN ISO 8041, ISO-2631, DIN EN ISO 5349, ISO-8662, UNI-2614, UNI-11048 and UNI-9916:
HVMA weighting filters

DIN ISO 7919, ISO 2954, ISO 10816:
Evaluation of mechanical vibration
