Apollo Box
Analyzer for Sound and Vibration
Smart FFT- and Octave Analyzer with 2, 4, 8 and 16 measuring channels
.jpg)

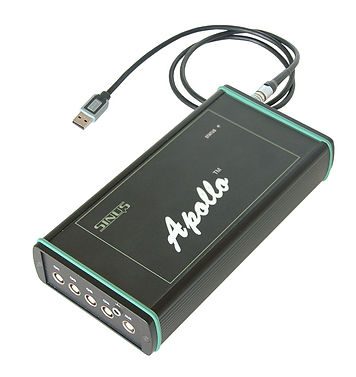

The Apollo-Box is a flexible and reasonably priced 2- or 4-channel data acquisition system with a USB interface. This small and robust box transforms a PC combined with our flexible software into a high-quality multi-channel acoustic analyzer for a wide variety of acoustic and vibration measurement applications.
Based on your measurement requirements you may choose from variants with 2 or 4 LEMO7 inputs or 4 BNC inputs. Further additional channels extend the functionality of the Apollo-Box. Among others 8 additional low-sample-rate channels and 2 tacho or trigger channels are available. You may also use the Apollo-Box as a channel extension to the Soundbook MK2 measurement system, for example.
The Apollo-Box is the ideal tool for:
-
Occupational safety and environmental protection
-
Engineering services
-
Quality assurance
-
Research and development
Version | Order no. | Main inputs |
|---|---|---|
Apollo_Box_4B | 908202.1B | 4x BNC |
Apollo_Box_4L | 908204.6A | 4x LEMO7 |
Apollo_Box_2L | 908201.3A | 2x Lemo7 |
The measurements you may implement with our modular software packages include:
-
Sound level measurements
-
Frequency analysis
-
Signal recording
-
Human vibration measurements
-
Measurements of ground-propagated vibration
-
Building and room acoustics
-
Machinery vibration measurements
-
Modal analysis
-
Order analysis
-
Structural analysis
Standards
IEC 61672: Class 1 sound level meter
IEC 60651: Class 1 sound level meter
IEC 60804: Class 1 sound level meter
IEC 61260: Class 0 filter
DIN EN ISO 8041, ISO-2631, DIN EN ISO 5349, ISO-8662, UNI-2614, UNI-11048 and UNI-9916:
HVMA weighting filters
DIN ISO 7919, ISO 2954, ISO 10816:
Evaluation of mechanical vibration
