Apollo Light

Analyzer for Sound and Vibration
Smart FFT- and Octave Analyzer with 2, 4, 8 and 16 measuring channels

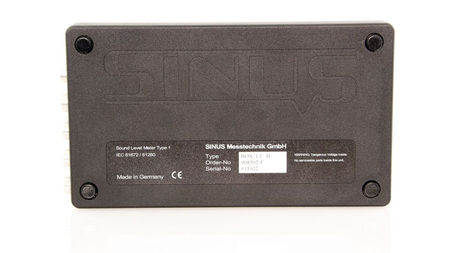

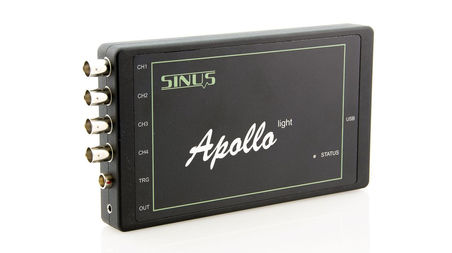

The low-cost sound and vibration analyzer Apollo_light hardware provides 2-16 measuring channels and additional trigger/tacho channels on the footprint of a USB hard drive. The measurement electronics is packaged in a robust, high-quality aluminium case. Ultra-low power consumption allows operation with a tablet PC. The Apollo_light is our cheapest FFT- and octave analyzer in our product range. Multiple Apollo_light devices can be synchronised for sample-synchronous operation and allow an individually adjustable sample rate for each channel.

The Apollo_light is especially well-suited for applications in:

Occupational safety and environmental protection
Engineering services
Quality assurance
Research and development

Version	Order no.	Main inputs
Apollo_lt_2B	908046.2	2 x BNC
Apollo_lt_2L	908045.4	2x Lemo 7
Apollo_lt_4L	908047	4x Lemo 7
Apollo_lt_4B	908048.7	4x BNC
Apollo_lt_8C	908049.5	8x LEMO NIM-CAMAC
Apollo_lt_8D	908052.6	1x DSUB25
Apollo_lt_16	908050.1	MDR 36, Splitter Box MDR/18x BNC

The measurements you may implement with our modular software packages include:

Sound level measurements
Frequency analysis
Signal recording
Human vibration measurements
Measurements of ground-propagated vibration
Building and room acoustics
Machinery vibration measurements
Modal analysis
Order analysis
Structural analysis

Standards

IEC 61672: Class 1 sound level meter

IEC 60651: Class 1 sound level meter

IEC 60804: Class 1 sound level meter

IEC 61260: Class 0 filter

DIN EN ISO 8041, ISO-2631, DIN EN ISO 5349, ISO-8662, UNI-2614, UNI-11048 and UNI-9916:
HVMA weighting filters

DIN ISO 7919, ISO 2954, ISO 10816:
Evaluation of mechanical vibration

Features

Flexible operation at any PC in your company via USB interface
Highest quality at fair prices
High-precision synchronisation via cable
Highest precision provided by a 24-bit ADC in combination with a new powerful Apollo filter processor
20V and 63V microphone polarization voltage for measuring range extension of standard condenser microphones
One single measuring instrument for a wide variety of applications
Software and drivers naturally downward compatible

SAMURAI
SAMURAI is our universal software package for the real-time noise and vibration analysis and offers comprehensive evaluation functions for post-processing. SAMURAI includes IEC 61672-1 standard sound level meters and 1/3 octaves according to IEC 61260.

SMT
The SINUS Measurement Toolbox for MATLAB® (SMT) provides the functionality of the globally established engineering tool MATLAB®.

NWWin
With Spectra’s Noise & Vibration Works software for Windows we provide a feature-rich, high-performance engineering tool for the post-process evaluation of sound and vibration measurement data.

µ-Remus
Specifically designed for mechanical engineers this signal analysis software package particularly excels in modal analysis and rotor balancing.

ME’scope VES
Vibrant Technology, Inc’s ME’scope VES software package offers extensive analysis capabilities for modal analyses. ME’scope allows the import of measurement data which were previously exported from our SAMURAI Transfer FRF option.
